8m Long Span Toothed Steel Grating Customized Press Welding Process

8m Long Span Toothed Steel Grating Customized Press Welding Process Grating Plate

8m long span toothed steel grating introduction

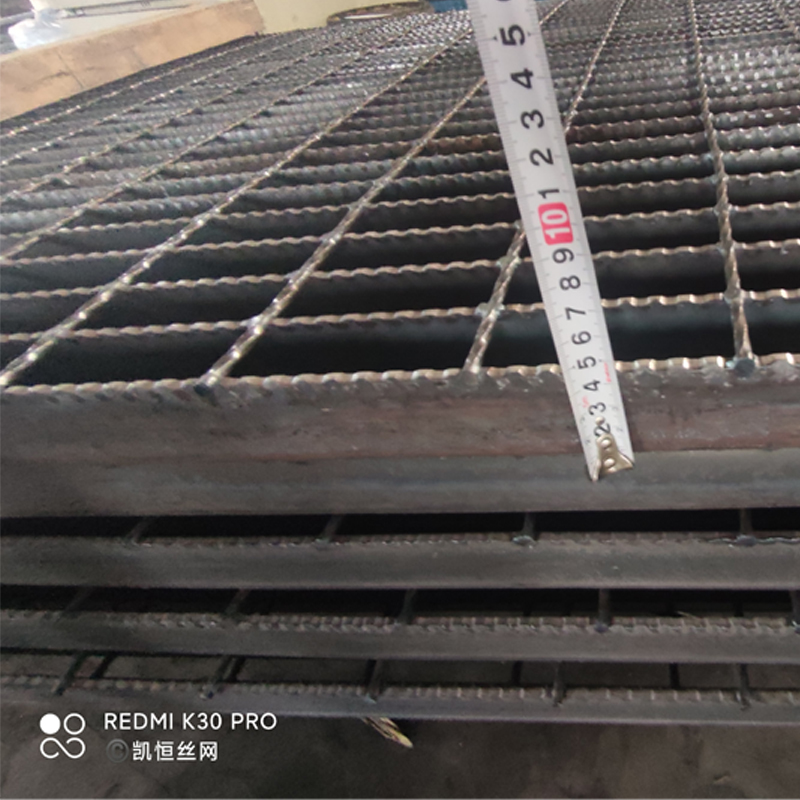

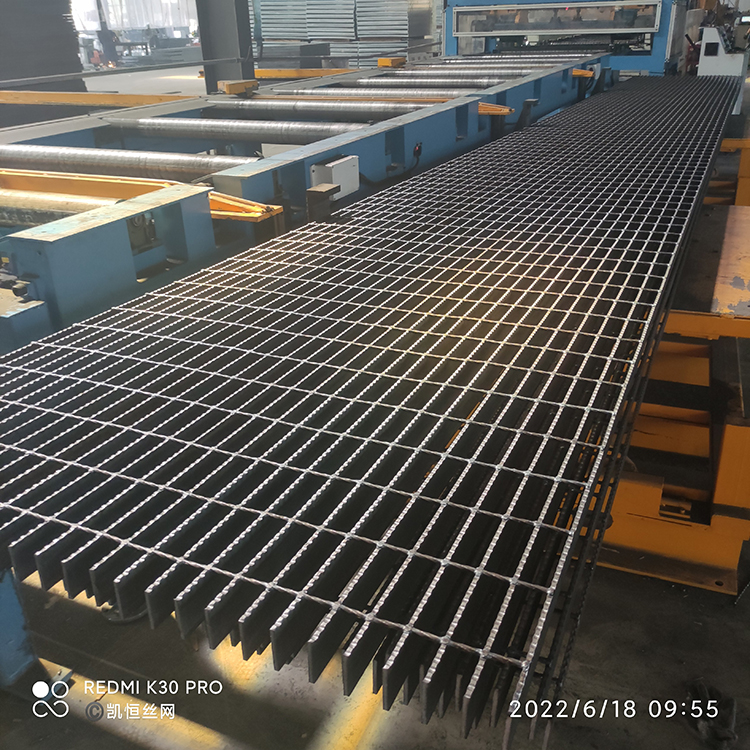

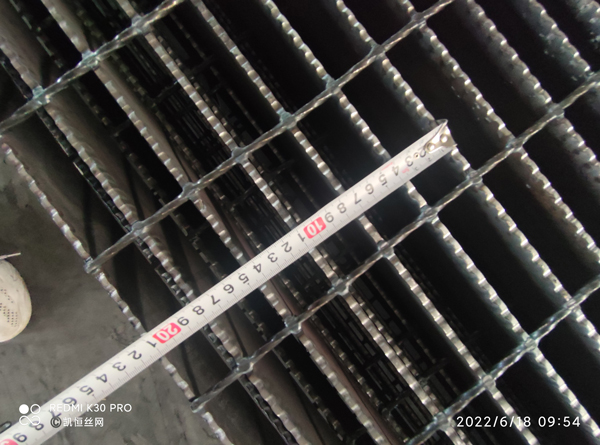

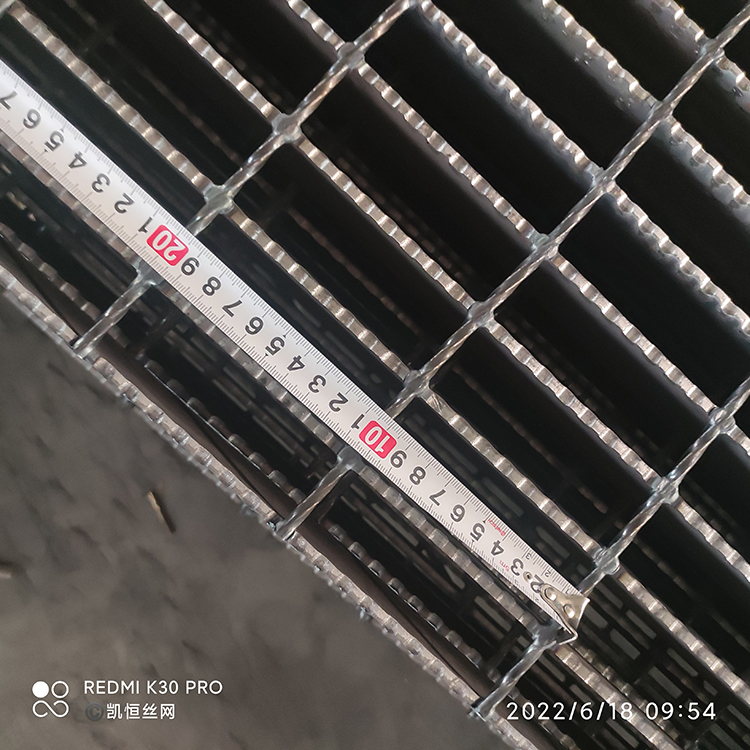

This product is made of zigzag flat steel with a spacing of 3cm and fried dough twist steel with a spacing of 10cm, which are welded by pressure welding machine, and then polished and welded into semi-finished products to be galvanized. The competitiveness of this product is that few manufacturers can produce and process this kind of large-span steel grating plate.

Mechanical properties of 8m long-span steel grating products in application scenarios

The theoretical weight of g505/30/100 steel grating is 77.9kg per square meter. The safe external line load and deformation deflection carried by different spans are as follows:

The above are the line load values and deformation deflections corresponding to different spans of this model. Please process and customize them according to the actual project. Generally, the drawings given by the design institute will be designed. If there is no design drawing, the above reference can be made

Service scenario and performance of 8m long span steel grating

This kind of steel grating is mostly used as the platform for the construction of steel structure workshop, which is used to carry heavy objects and resist impact. The workshop generally requires good ventilation and lighting. The metal plate products of grid structure can meet this demand. The application industries are mostly petrochemical industry, municipal engineering, sewage plant, boiler room, oil refinery, ship wharf, etc. However, ship wharf and large grain depot unloading area mostly use heavy-duty steel grating.

The steel grating has good compression resistance. Its flat steel is installed on the vertical platform, and a large number of flat steel are densely distributed, forming a very good load-bearing grid structure; Impact. The horizontal bar will fix and weld the flat steel. The dense grid has excellent stability. In the operation of equipment in the plant, the steel grating can offset the horizontal impact force; The other is its grid hole, which has good ventilation and daylighting effect. Tooth shape anti-skid is mostly used in chemical plants and oil refineries.

Long Span Toothed Steel Grating

8m Long Span Steel Grating

Welding Process Grating Plate

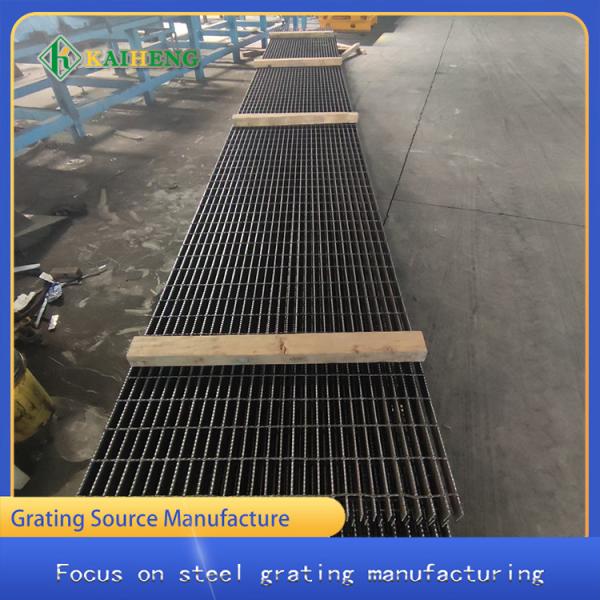

8m Long Span Toothed Steel Grating Customized Press Welding Process Images
