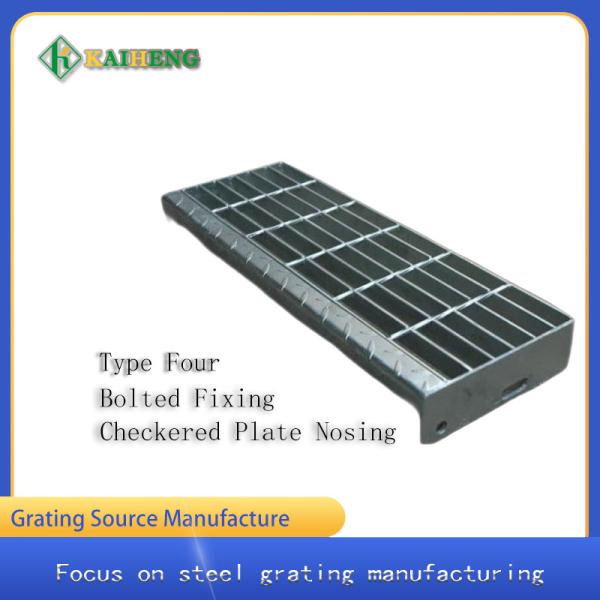

T4 Checkered Platenosing Steel Grate Stair Treads Bearing Bars At 40mm Pitch

Name: T4 Checkered Platenosing Steel Grate Stair Treads Bearing Bars At 40mm Pitch
Brand: Kaiheng Wire Mesh
Price: 1 USD

Quality T4 Checkered Platenosing Steel Grate Stair Treads Bearing Bars At 40mm Pitch wholesale

Brand Name : Kaiheng Wire Mesh

Model Number : kh118

Certification : ISO 9001:2015

Place of Origin : Anping,Hebei,China

MOQ : negotiation

Price : real-time quotes

Payment Terms : Western Union, MoneyGram, T/T, D/A, L/C

Supply Ability : 2000㎡ per day

Delivery Time : negotiation

Packaging Details : Galvanized iron sheet binding & Wooden Pallet/Steel Pallet Or As required

name : T4 Stair Tread

color : silver white

material : carbon steel q235，zinc

surface : hot dip galvanizing

bearing bar pitch : 40mm

Width（mm） : 115,155,195,235,275,315

cross bar pitch : 10cm

Section size of flat steel（mm） : 25*3,25*5,32*5,40*5

Maximum Length（mm） : 450,750,1200,1500

performance : corrosion resistance and Load bearing

Contact Now

T4 Welded Fixing Without Nosing Stair Tread For Steel Ladder 40mm Bearing Bars Pitch

Brief introduction of T4 type flat steel step grating plate with spacing of 40mm

T4 Checkered Platenosing Steel Grate Stair Treads Bearing Bars At 40mm Pitch

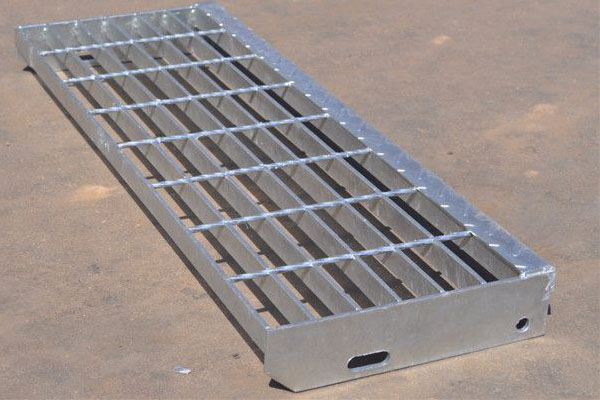

T4 type steel ladder step grating plate with 40mm flat steel spacing is the lightest and most economical model. It is an ideal choice when the span is small. It adopts load flat steel and cross bar longitude and latitude to design a steel ladder step plate grating with rectangular grid holes. The side plate size of T4 type is 65mm * 5mm flat steel, and the bolt hole spacing varies according to the width of the step plate. See the parameter table for details.

T4 Checkered Platenosing Steel Grate Stair Treads Bearing Bars At 40mm Pitch

Attribute list of steel ladder step grating plate with T4 flat steel spacing of 40mm

name	T4 model 40mm bearing bar pitch stair tread grid
color	silver white
material	carbon steel q235 or as your required
surface	hot dip galvanizing
performance	Economical and light, corrosion-resistant, high load-bearing, convenient installation and disassembly
bearing bar pitch(mm)	40mm
grid width(mm)	115,155,195,235,275,315
bearing bar(mm*mm)	253,255,325,405
Maximum Length(mm)	450,750,1200,1500
standard	iso9001:2015
transportation	shipping
Side plate size(mm*mm)	65*5
Bolt hole spacing(mm)	45,75,75,100,150,150

T4 Checkered Platenosing Steel Grate Stair Treads Bearing Bars At 40mm Pitch

Performance and application of T4 flat steel step grating plate with spacing of 40mm

T4 Checkered Platenosing Steel Grate Stair Treads Bearing Bars At 40mm Pitch

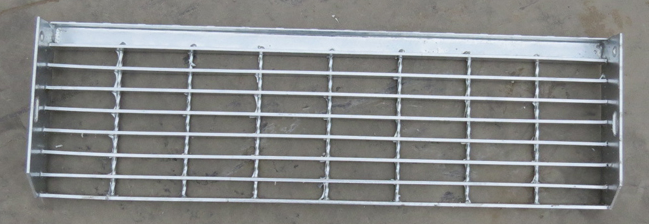

T4 type steel ladder step plate with a spacing of 40mm has the strongest resistance in the scene of surface impact due to the small spacing of flat steel and high density of load flat steel. Moreover, the hot-dip galvanizing treatment process can make it more corrosion-resistant. It is most widely used in the industrial field. In addition, its grid hole structure can show advantages in rainy and snowy weather, free from manual maintenance and cleaning. Compared with concrete structure, this material has the advantages of light structure and low price.

Customization of steel ladder step grating plate with T4 flat steel spacing of 40mm

T4 Checkered Platenosing Steel Grate Stair Treads Bearing Bars At 40mm Pitch
This specification has multiple width recommendations in the attribute table, and a variety of flat steel section specifications correspond to different widths and lengths. If you need to customize, you can refer to the length and width in the drawing design to select the corresponding flat steel model recommendations. Please send the request to email: info@cnkaiheng.com
